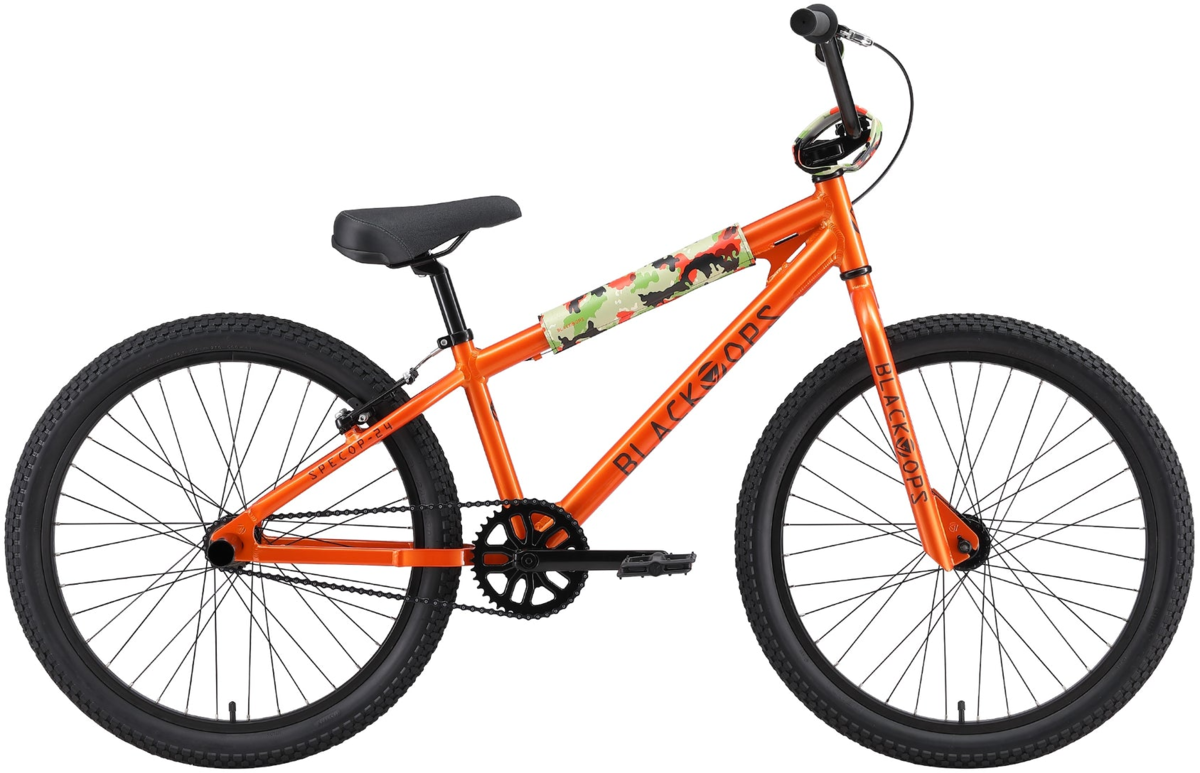

Black Ops SpecOp-24
$599.99
Details
- 6061 aluminum alloy frame with reinforcing gussets at critical points
- Steel fork
- 24" alloy rims with stainless steel spokes
- 24" x 2.30" tires
- Single-speed drivetrain with flip-flop rear hub
- Three-piece chromoly BMX cranks with 8-spline sealed bearing BB
- Black Ops SpecOp custom BMX saddle with anti-slip surface
- Black Ops SpecOp BMX handlebar
- Rear alloy v-brake with 2-finger lever
- Black Ops rear pegs
- Black Ops custom 3-piece pad set
Suggested Rider Size:
- 60-68" / 4'10" - 5'6"
WEIGHTS:
- Bike Weight: 30 Lbs
- Rider Weight Limit: 250 Lbs

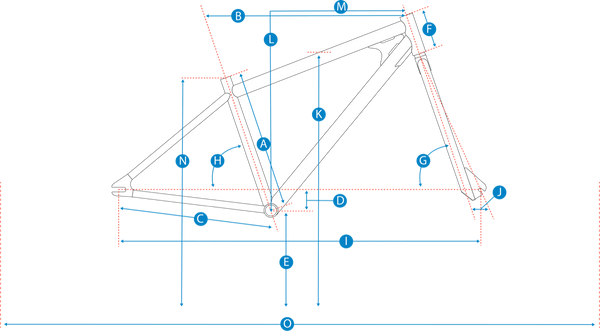

| KEY | mm | inch | |
|---|---|---|---|
| Seat Tube Length (BB Center to Top) | A | 318 | 12.5 |
| Top Tube Length (Effective) | B | 571 | 22.5 |
| Chainstay Length | C | 404 | 15.9 |
| BB Drop | D | 20 | 0.8 |
| BB Height (BB Center to Ground) | E | 290 | 11.4 |
| Head Tube Length | F | 125 | 4.9 |
| Head Tube Angle | G | 73.5° | 73.5° |
| Seat Tube Angle | H | 72.0° | 72.0° |
| Wheelbase | I | 996 | 39.2 |
| Fork Offset | J | 40 | 1.6 |
| Standover Height* | K | 630 | 24.8 |
| Frame Stack | L | 0 | 0 |
| Frame Reach | M | 0 | 0 |
| Seat Tube to Ground | N | 595 | 23.4 |
| Overall Length | O | 1610 | 63.4 |
| Crank Length | 175 | 6.9 | |
| Handlebar Width | 711 | 28 | |
| Stem Length | 50 | 2 | |
| Seat Post Length | 300 | 11.8 |
Specs
| Frame | 6061 aluminum alloy frame with added reinforcements at critical points |
|---|---|
| Fork | Heavy-duty steel fork |
| Rims | 24" x 36h double- wall alloy rims |
| Hubs | Front Hub: Alloy front hub with sealed cartridge bearings /Rear Hub: Alloy flip/flop rear hub with 14mm axle and sealed cartridge bearings |
| Spokes | 14g stainless steel spokes |
| Tires | 24" x 2.30 Vee Tire Co. Speedster tires |
| Bottom Bracket | 8-spline quad bearing sealed cartridge bottom bracket |
| Crankset | 3-piece tubular chromoly cranks |
| Chainrings | 39T alloy chainring with 17T rear sprocket |
| Chain | KMC S1 1/2? x 1/8? 92 link chain |
| Brakes | Rear Tektro V-Brake |
| Handlebars | Steel BMX handlebar |
| Tape/Grips | Rubber mushroom style BMX grips |
| Stem | Alloy 4-Bolt 1-1/8" threadless stem |
| Headset | Steel 1-1/8" threadless headset |
| Seatpost | Alloy Seat Post with integrated clamp |
| Saddle | BlackOps Mullet Saddle |
| Pedals | Alloy platform pedals |
| Accessories & Extras | Pads: Digital camo 3-piece pad set, Pegs: Rear Pegs, Chain Guard: Smoke clear plastic chain guard |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Blaze Orange / One Size / 24-inch | 888571100059 | 671202 | 210000014064 |
